Astronaut Reality Helmet

A project at Tomorrow Lab for National Geographic

Role: Wearable Design, Electrical Engineering

In collaboration with McCann NY and FrameStore, Tomorrow Lab created a wearable cinematic experience to promote the launch of the new National Geographic television series "One Strange Rock", directed by Darren Aronofsky and hosted by Will Smith. The show details the experiences of past and present astronauts and how these events changed their lives and their perspective of their home planet.

Design Vision & Technical Strategy

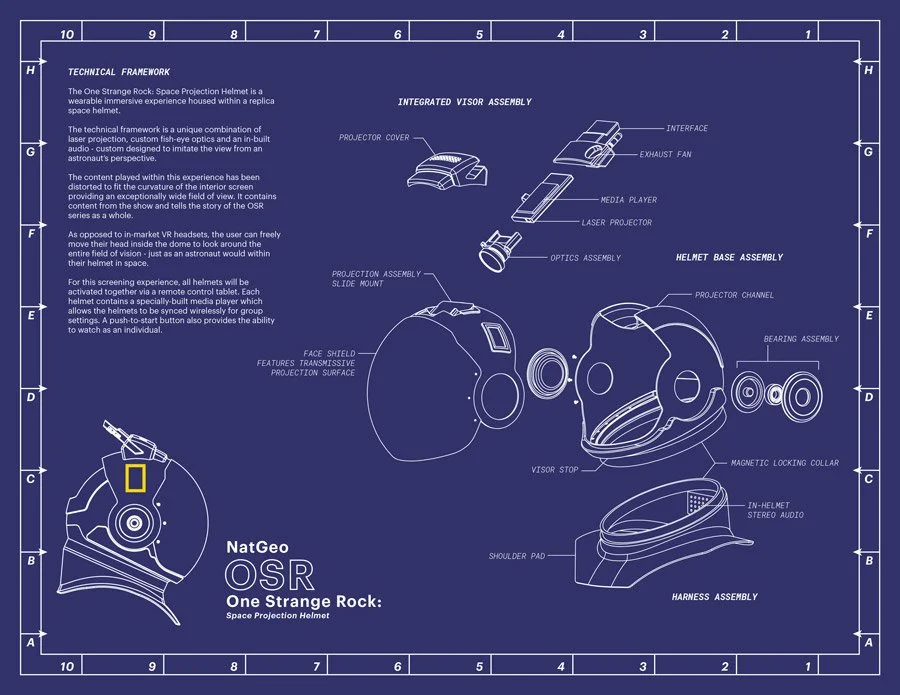

The helmets take design cues from a real astronaut helmet, including a lower body harness and articulating visor. In order to re-create an astronaut’s view of Earth from space, the visor itself is actually a projection screen, specially textured and painted to allow content to be seen on the interior and exterior surfaces. The dome is big enough to allow a user to look around inside without feeling claustrophobic, but not so big that it creates a ridiculous experience when wearing it. Minimal branding touchpoints were added including the National Geographic logo.

Electrical Engineering

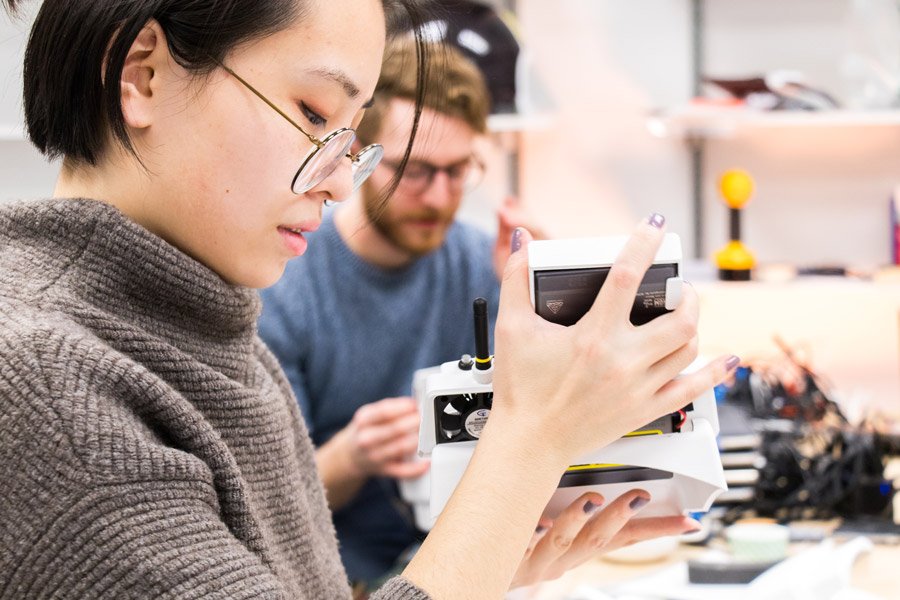

All the electronics are bundled into a self-contained, removable, rechargeable module, allowing units to be easily maintained, recharged, and swapped when needed. The electronics module contains a Raspberry Pi with Bluetooth audio connection to embedded stereo audio speakers, creating a portable high-fidelity sound experience. A single button with built-in LED indicator sits on top of the electronics module, to indicate both the state of the video playback, as well as control the video. A dedicated WiFi Router allows for connection to the helmets with zero setup, and a quiet onboard fan keeps the units cool.

Rapid Fabrication

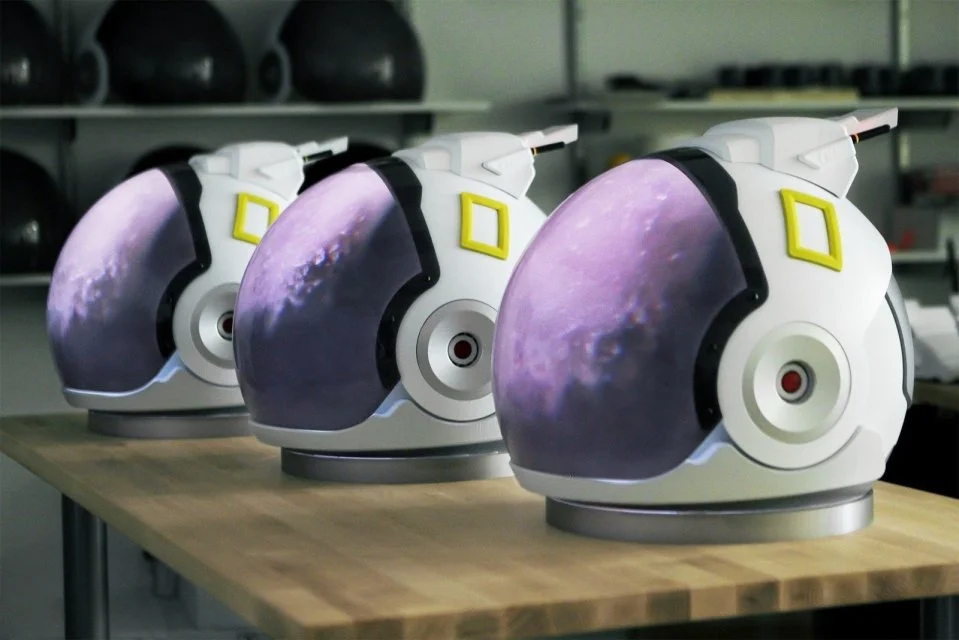

For a special screening premier of the series "One Strange Rock", we rapidly fabricated 25 units using 3D printed MJF parts. The visors were cast in tinted urethane. The Harnesses were formed on a 80 year-old British thermoforming rig. Each helmet was hand-assembled in our shop here in Chinatown.
